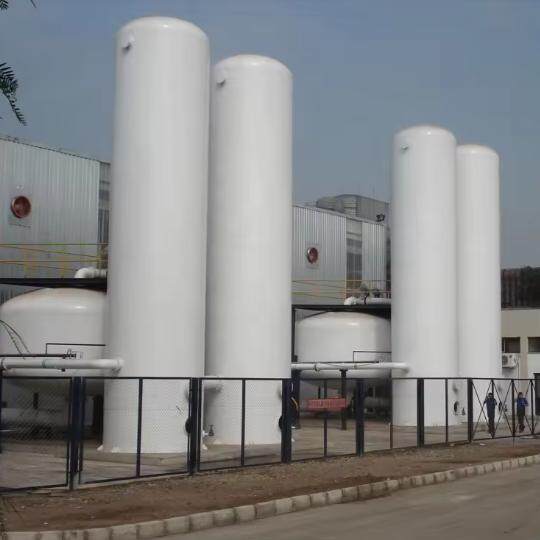

90%-95% Purity VPSA Oxygen Generator

Vacuum Pressure Swing Adsorption Oxygen Generator  utilizes an advanced adsorptive gas separation technology. It separates nitrogen and moisture from the air, efficiently producing oxygen with a purity of 90% to 95%. VPSA oxygen production equipment plays a significant role in traditional industries such as steel, glass fiber and special materials, papermaking,wastewater treatment, cement, ceramics, and glass furnaces, as well as in non-ferrous smelting, solid waste recycling, and other fields.

GNEE VPSA Oxygen Generator with 90%-95% purity is a powerful and efficient solution for industries that require large volumes of oxygen. These generators enhance production efficiency, improve product quality, and reduce environmental impact. With advanced technology, automated control systems, and robust safety features, VPSA plants are an excellent choice for modern industrial applications

Technology:

1.Adsorption Process: Utilizes advanced zeolite molecular sieve adsorbents to selectively adsorb nitrogen from the air, allowing oxygen to pass through.

2.Vacuum Desorption: Employs a vacuum to desorb nitrogen from the adsorbent, enhancing system efficiency and reducing energy consumption.

Efficiency:

1.Low Energy Consumption: Designed for high efficiency with optimized power usage.

2.High Recovery Rate: Achieves a high oxygen recovery rate from ambient air, maximizing output.

Control System:

1.Automated Operation: Equipped with a PLC (Programmable Logic Controller) for precise control and automation.

2.User-Friendly Interface: Features a touch-screen interface for easy operation and real-time monitoring of system performance.

Modular Design:

1.Scalable: Can be expanded or reduced in capacity based on changing production needs.

2.Compact Footprint: Occupies minimal space, suitable for integration into existing industrial setups.

Safety Features:

1.Emergency Shutdown: Automated shutdown in the event of system malfunctions or emergencies.

2.Pressure Relief Valves: Prevent over-pressurization and ensure safe operation.

3.Alarm Systems: Provide alerts for abnormal conditions, such as low oxygen purity or high pressure.

Industry-Leading Ultra-Low Energy Consumption

Utilizes lithium-based molecular sieves and high-efficiency blowers, with pure oxygen power consumption as low as 0.28 kWh/m³ (380V PSA models), 10% lower than international peers.

Fully Automated, Maintenance-Free Operation

One motor + 11 valves complete the entire process control, supporting unmanned operation. Maintenance only requires periodic filter replacement.

Modular Expansion and Flexible Customization

Oxygen purity (30%-93%) and pressure (≤20 kPa) can be adjusted as needed. Single-unit capacity covers 100-80,000 m³/h, supporting multi-unit parallel operation.

Fast Delivery and Low-Cost Infrastructure

Occupies only 50% of the space required by cryogenic methods, reduces water usage by 67%, and provides 3D construction drawings for rapid deployment in 60-120 days.

Military-Grade Safety and Reliability

Low-pressure operation (no high-pressure oxygen storage risk), certified by ASME/CE/CRN. Key valves use PTFE seals with anti-leakage design.

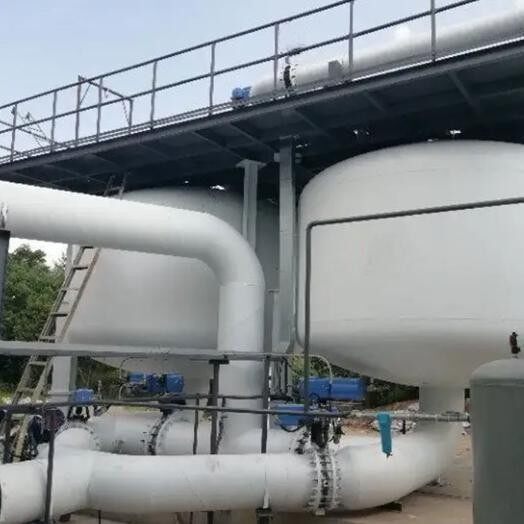

The operation of VPSA oxygen generator is based on mature and reliable technology. It uses zeolite molecular sieve (ZMS) and vacuum regeneration system. The whole process can be divided into three main stages: purification, adsorption and desorption. ​

1.Purification stage

The first step in oxygen production is to purify the ambient (inlet) air. The air is first filtered to remove impurities and then moderately compressed by the fan system. This pretreatment ensures that the air entering the subsequent stage is clean and meets the requirements of oxygen extraction. ​

2.Adsorption stage

The pretreated air enters a container containing zeolite. Zeolite is a highly porous material with a unique structure that enables it to selectively adsorb nitrogen molecules while allowing oxygen molecules to pass through. As the air flows through the container, the zeolite further removes residual moisture and carbon dioxide and adsorbs nitrogen, eventually producing oxygen-rich gas that is discharged from the container outlet. Before the adsorption capacity of the zeolite is exhausted, the adsorption process will be interrupted to prevent saturation and ensure continuous and stable operation. ​

3.Desorption stage​

When the zeolite is saturated with nitrogen, it needs to be regenerated to restore its adsorption capacity. The desorption process is achieved by reducing the pressure to below the adsorption pressure. The dry-running vacuum pump generates a vacuum, which releases the nitrogen and other gases adsorbed on the zeolite, and the resulting waste gas is discharged into the atmosphere. To ensure a continuous supply of oxygen, a buffer tank is installed in the system, and the cycle of purification, adsorption and desorption is carried out continuously. ​

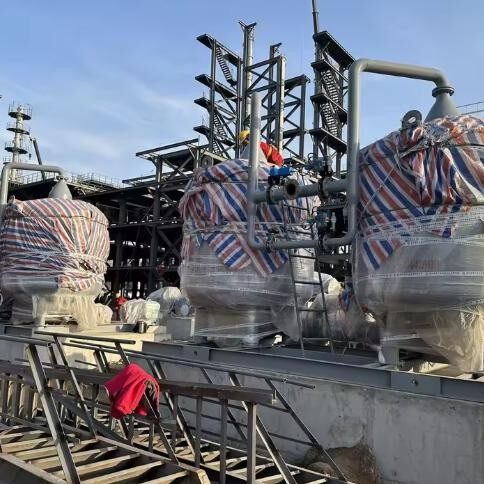

1. Packed with wooden case, anti-collision foam block, machine be packed by Stretch film, pearl cotton, according to the export packing standard.

2. Two sets machine delivery by unit 20 feet or 40 feet container, the booster will packed and fittings be packed by wooden case.

3.Wooden case exterior signs up and anti-collision

4. lmportant fragile parts of the equipment will be treated separately for collision prevention, like gauge, flow meter, controller.
