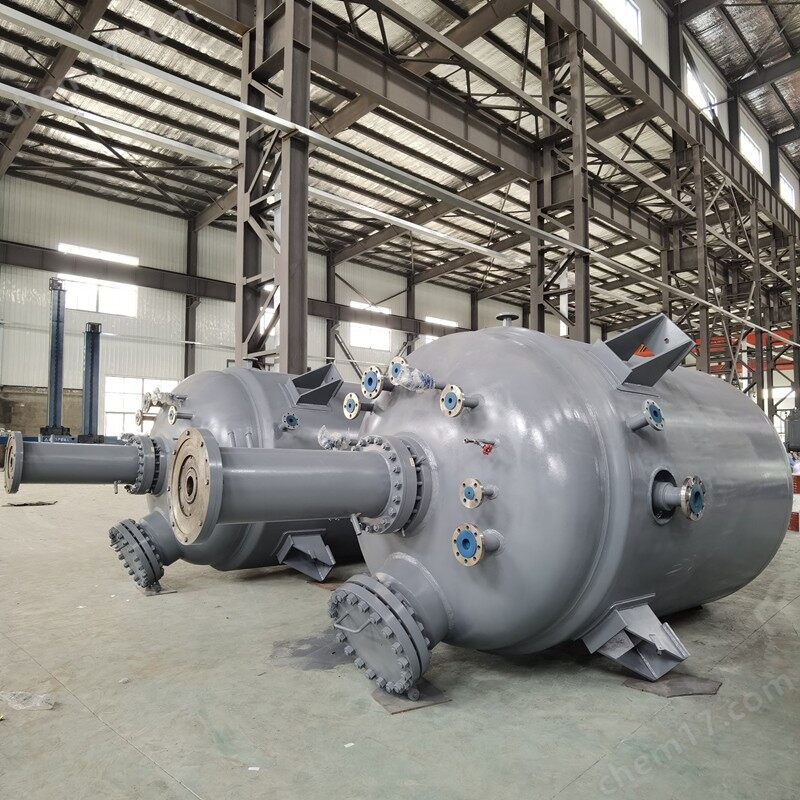

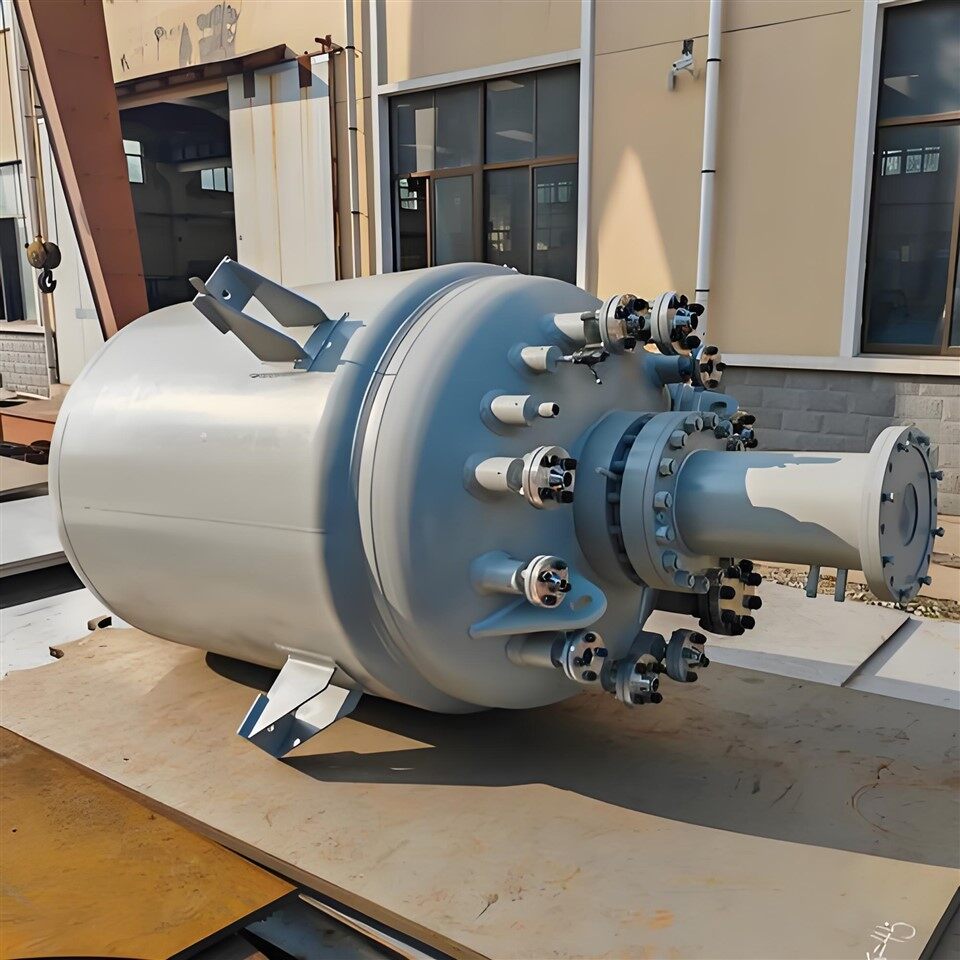

Hydrogenation Reactor
Basic Introduction
A hydrogenation reactor is a crucial piece of equipment in both organic chemistry laboratories and industrial production. It serves not only as a vessel for hydrogenation reactions but also for scenarios requiring thorough mixing of liquids and gases.
GNEE is a prominent organization actively engaged in offering an unparalleled range of Hydrogenation Reactor. The offered hydrogenators are developed using the best in class material and sophisticated technology as per the set standards of industry.
Product Introduction
Hydrogenation reactors are widely used in industries such as petroleum, chemical engineering, rubber, pesticides, dyes, medicine, and food. The working principle of a hydrogenation reactor is to fully mix hydrogen, catalysts, and materials through high-speed stirring, thereby achieving the effect of rapid reaction.
Product Parameters
- Useful volume: 5 liters - 200 m3
- Design pressure: up to 220 bar
- Design temperature: 150 to 400°C
- Material: almost all metallic materials (carbon steel, stainless steels, Ni-based materials, titanium, etc.)
- Heat transfer internally: tube coils, tube bundle heat exchangers
- Design always specially adapted to your needs
Hydrogenation reactor structure
Hydrogenation reactor working principle
Hydrogen, catalyst and materials are fully mixed through high-speed stirring, so as to achieve the effect of rapid reaction.
Structural composition
Hydrogenation Reaction Kettle.The lower part of the kettle body is equipped with a gas distributor, and hydrogen is fully mixed with materials from bottom to top through the gas distributor.
Product Advantages
- Compact design without external gas recirculation
- Two zones for gas dispersion (PHASEJET and GASJET)
- Optimum mass transfer and maximum availability of the dispersed gas
- No concentration or temperature gradient in the reaction phase
- High cooling capacity
- Different heat exchanger types available
- High mechanical reliability
- Available with mechanical seal or magnetic drive
- Available as batch or continuous reactor
- Simple, safe scale-up / scale-down
Precautions for using hydrogenation reactors
- For operators who are operating the autoclave for the first time, there must be at least one operator who has mastered the operation of high-pressure reactors proficiently on site.
- Operators on site must wear cotton gloves and shoes without iron nails.
- Do not carry items that are easy to cause explosion or spontaneous combustion such as mobile phones, lighters, MP3 players into the hydrogenation work area.
- Operators near the hydrogenolysis should handle tools and parts gently, and must not cause rigid collisions that may generate sparks.
- When depressurizing, the tail gas from the high-pressure reaction should preferably be led outdoors through a rubber hose, or into a fume hood.
FAQ
Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
Q: What is the standard of package?
A: Export standard package or special package according to customer's requirement.
Q: Why should I choose GNEE?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
Q: Can your products be customized?
A: Considering the different sizes, materials, and heat exchange areas required for heat exchangers in different industries, our products can be customized according to your needs.
Q: What is the price of shipping?
A: The price will vary depending on the delivery port.
