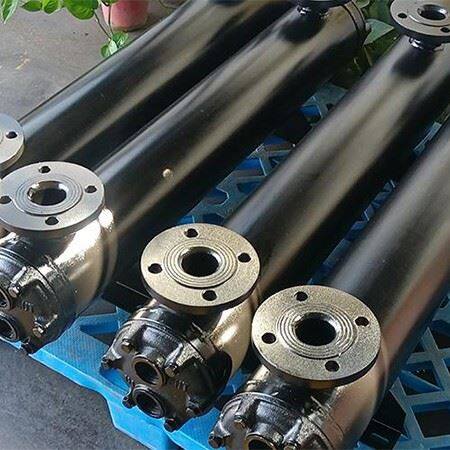

Stainless Steel Shell And Tube Evaporator

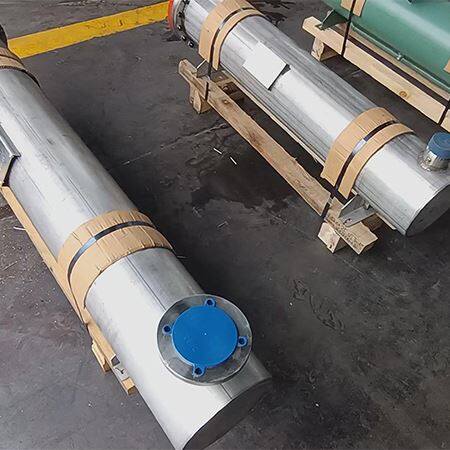

Stainless Steel Shell and Tube Evaporator

The stainless steel shell-and-tube evaporator is a heat exchange device made of stainless steel as the core material, consisting of components such as a shell and a tube bundle. It realizes the evaporation of cold fluid through heat exchange between the fluids in the tube side and the shell side.

GNEE is a manufacturer and supplier of shell-and-tube evaporators, capable of providing customized product services.

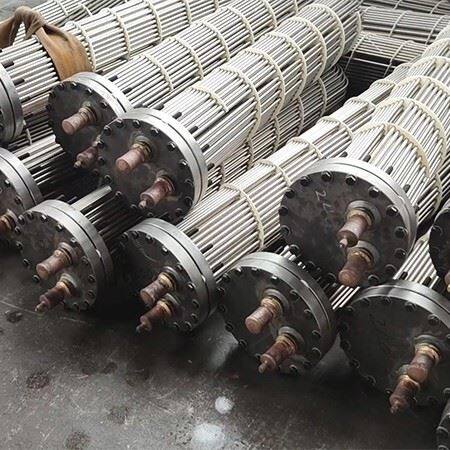

The shell-and-tube evaporator is meticulously crafted from 304 stainless steel for both the tube bundle and outer shell.

This premium material selection endows the evaporator with exceptional corrosion resistance, a wide temperature tolerance range, and zero contamination risk.

It is widely utilized in refrigeration systems such as industrial chillers and printing machine coolers. Specifically, it excels in applications requiring high-purity water sources, including cooling processes for edible products like wine, as well as medical dialysis equipment.

Cooling: 12k BTU (30F Differential)

Heating: 55k BTU (140F Differential)

Port Sizes:

"Tube" Ports (End): 3/4" Female NPT

"Shell" Ports (Side): 1" Female NPT

Tube Qty: 19

Construction Material: 316L Stainless Steel

HX Area: 1.615 sqft

Strong Corrosion Resistance: Stainless steel has excellent anti-corrosion performance, which can effectively resist the erosion of corrosive substances such as acids, alkalis, and salts. It is suitable for corrosive environments such as seawater, chemical media, high humidity, or chlorine-containing environments.

High Mechanical Strength: It has a relatively low density (about 7.9g/cm³) and light weight, while featuring high mechanical strength, strong pressure resistance, and a solid structure. It can withstand high pressure and impact force and is not easy to deform or be damaged.



Good Sanitary Performance: Its surface is smooth, which makes it not easy to breed bacteria and dirt. It meets food-grade hygiene standards and can be widely used in industries with strict hygiene requirements such as food and medicine.

Long Service Life: Under normal use conditions, the stainless steel shell-and-tube evaporator has a long service life, which can reduce the frequency of equipment replacement and maintenance and lower the overall cost.

Recyclability: Stainless steel materials can be 100% recycled, with good environmental protection performance.

Refrigeration and Air-Conditioning Field: It is used in water chillers, air-conditioning systems, etc. It can make refrigerants evaporate and absorb heat in the evaporator, thereby achieving the cooling of air or water.

Chemical Industry Field: In the chemical production process, it can be used for operations such as heating, cooling, condensation and evaporation in various chemical reactions.

Food and Beverage Field: It is suitable for processes such as sterilization, cooling and concentration in food processing.

Pharmaceutical Field: It can be used for processes like drug concentration, crystallization and drying in pharmaceutical production, as well as cooling systems in medical equipment.

Since its founding in 2008, GNEE has been a reputable and skilled manufacturer and supplier of chemical equipment, including reactors, towers, condensers, heaters, heat exchangers, and other customized items.

If you want to know more about stainless steel shell and tube evaporator or are interested in purchasing it, you can send an email to info@gneeheatex.com.We will reply to you as soon as possible after we see the message.
