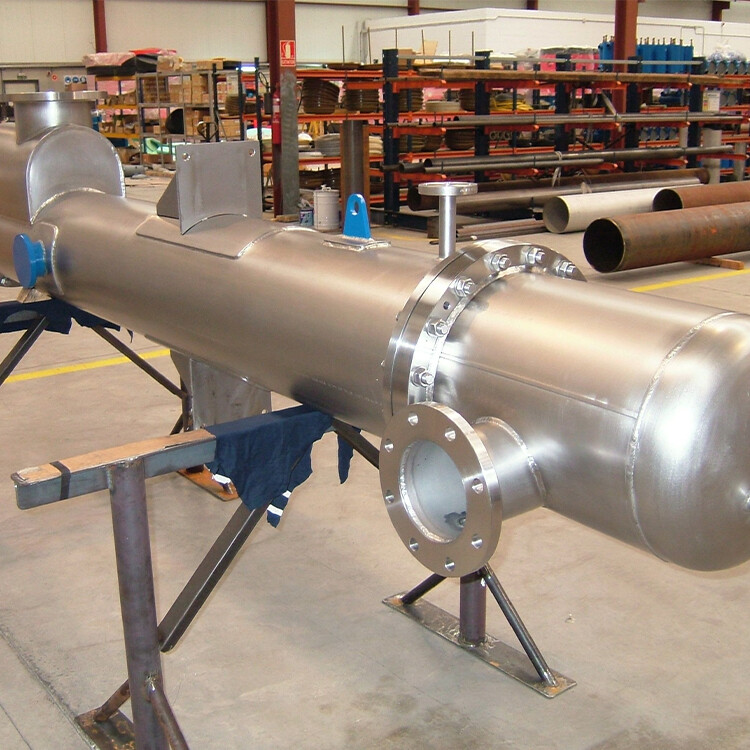

Shell and Tube Type Condenser
Basic Introduction
A shell-and-tube condenser is a type of heat exchanger. Shell and tube condensers are widely used in industrial applications to condense vapor into a liquid. GNEE is an experienced shell-and-tube heat exchanger manufacturer, Our condensers are engineered to deliver exceptional heat transfer performance and durability, meeting the stringent demands of various industrial applications. With a focus on precision and reliability, we ensure that our products exceed customer expectations and industry standards.
Product Introduction

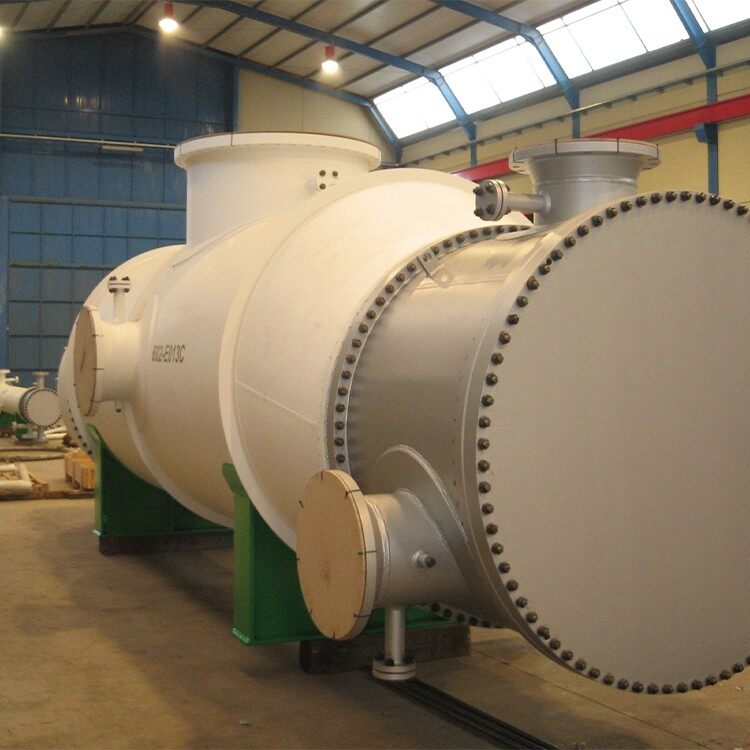

Shell tube type condensers are a type of heat exchanger commonly used in industrial and commercial applications.
They are designed to transfer heat from a hot fluid, typically a vapor, to a cooler fluid, usually a liquid, by passing the hot fluid through a series of tubes that are surrounded by the cooler fluid.The tubes are typically made of materials such as copper, stainless steel, or titanium, while the shell is made of materials such as carbon steel or stainless steel.
Product Structure
- The main components of a shell and tube condenser include a shell, tubes, tube sheets, baffles, and a bundle support plate.
- The shell is a cylindrical vessel that contains the tubes and serves as a housing for the condenser.
- The tubes are typically made of copper, brass, or stainless steel and are arranged in a bundle within the shell.

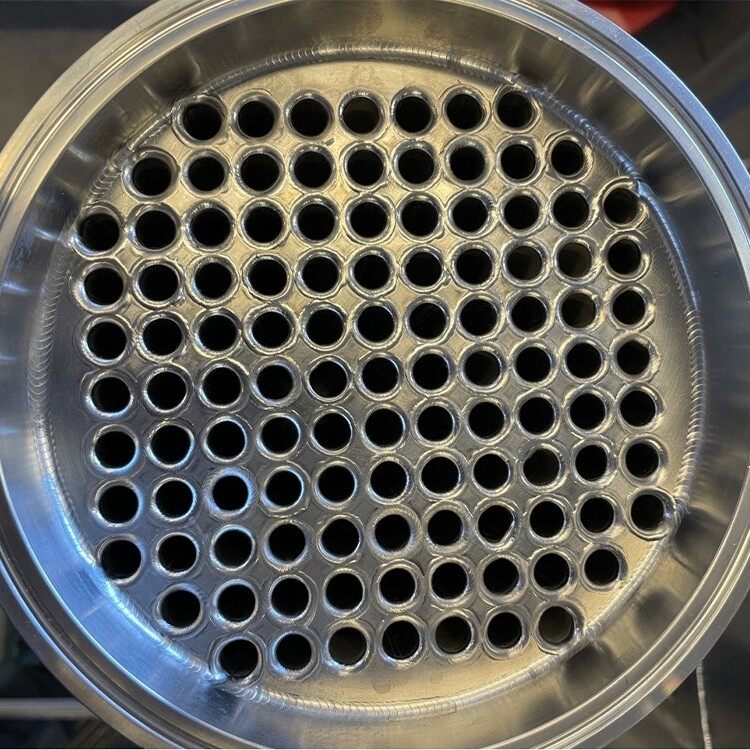

- The tube sheets are located at each end of the shell and serve to support and seal the tubes.
- Baffles are used to direct the flow of the fluid and increase heat transfer efficiency.
- The bundle support plate is located at the bottom of the shell and supports the weight of the tube bundle.
Shell and tube type condenser Parameters
|
Capacity |
0.1 sqm2 to 200 sqm2 |
|
Orientation |
Vertical Orientation , Horizontal Orientation |
|
Shape |
Round |
|
Finishing Type outer |
Matt Type ,Mirror Finishing |
|
Temperatures Range |
30 TO 250 Degree |
|
Length |
5000mm |
|
Surface |
110sqm |
|
Diameter |
1000mm |
Product Advantages
- High Efficiency: To ensure fast vapour condensation thus, cooling shell and tube condensers are designed for efficient heat transfer.
- Versatility: These coolers are suitable for different operating temperatures and flow rates because they can operate in a wide range of conditions.
- Reliability: Even in harsh environments, shell-and-tube condensers have robust construction materials that enhance durability and, hence, reliability in the long run.
- Ease of Maintenance: It is also simple to perform routine maintenance tasks such as cleaning or inspecting tubes because it leads to minimum idle time & operational interruption.
Product Applications
- Power Generation: Power plants utilize shell and tube condensers in their condensing units to convert exhaust steam from turbines back into water, which can then be reused in the boiler, enhancing the overall efficiency.
- Power Generation: Power plants utilize shell and tube condensers in their condensing units to convert exhaust steam from turbines back into water, which can then be reused in the boiler, enhancing the overall efficiency.
- Oil and Gas Industry: In oil refineries, these condensers play a crucial role in condensing hydrocarbon vapors during distillation processes, ensuring the separation of different fractions of crude oil.
- HVAC Systems: shell and tube condensers are critical in heating, ventilation, and air conditioning systems for condensing refrigerants, improving the system's cooling efficiency and reducing energy consumption.
- Pharmaceutical Industry: In pharmaceutical manufacturing, condensers are employed to condense solvents and other volatile compounds, helping maintain product purity and process efficiency.
- Distillation Processes: Condensers in distillation columns use shell and tube condensers to condense and separate components based on their boiling points, crucial for producing high-purity products.
FAQ
Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution. We have shipping agent can choosing the cheapest and fastest delivery. FOB, CIF, C&F or EXW are no problem for us.
Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
Q: What is the standard of package?
A: Export standard package or special package according to customer's requirement.
Q: Why should I choose GNEE?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
