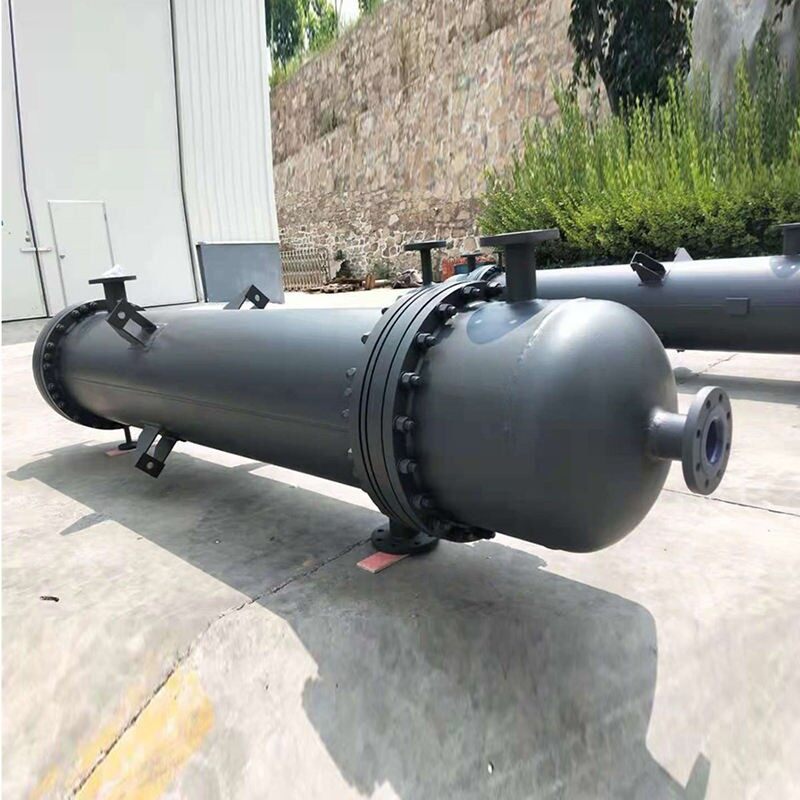

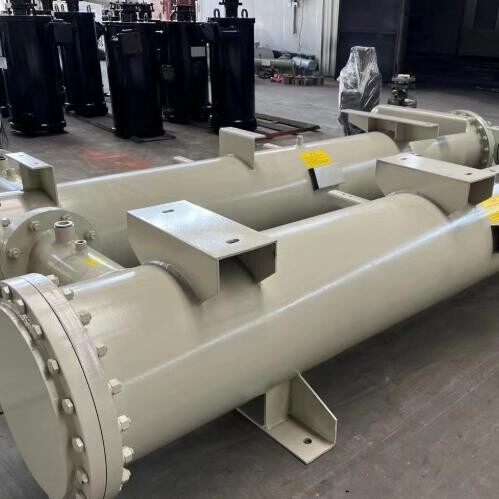

Steam-to-Liquid Heat Exchangers
Products Description
Steam-to-liquid heat exchangers transfer heat from steam to a liquid, typically water, without direct contact between the two fluids. They are widely used in various industries for applications like hot water generation, process heating, and space heating. These exchangers utilize the latent heat of vaporization of steam to efficiently heat the liquid medium.
Vapor-to-Liquid Heat Exchangers Parameters
| Size | Material of Construction |
Surface Area |
Overall Length |
Shell In Connection |
Shell Out Connection |
Tube-side Connection |
|---|---|---|---|---|---|---|
| 4" x 36" | 304L SS | 8.8 sq ft | 45.75" | 1.5" NPT | 1" NPT | 1.5" TC |
| 6" x 24" | 304L SS | 11.3 sq ft | 38.13" | 2.5" NPT | 1" NPT | 2" TC |
| 6" x 24" | 304L SS | 11.3 sq ft | 38.13" | 2.5" NPT | 1" NPT | 2.5" TC |
| 6" x 54" | 304L SS | 24.1 sq ft | 68.13" | 2.5" NPT | 1" NPT | 2" TC |
| 8" x 36" | 304L SS | 27.2 sq ft | 51.38" | 2.5" NPT | 1" NPT | 3" TC |
| 8" x 54" | 304L SS | 40.1 sq ft | 69.38" | 4" NPS | 1.5" NPT | 2" TC |
| 8" x 54" | 304L SS | 40.1 sq ft | 69.38" | 4" NPS | 1.5" NPT | 3" TC |
| 8" x 54" 3-A | 316L/304L SS | 40.1 sq ft | 69.38" | 4" NPS | 1.5" NPT | 3" TC |
| 8" x 72" | 304L SS | 53 sq ft | 87.38" | 4" NPS | 2" NPT | 3" TC |
| 10" x 54" | 304L SS | 70.3 sq ft | 72.81" | 4" NPS | 2" NPT | 4" TC |
Features of Steam-Liquid Heat Exchangers
Designed for steam-to-liquid applications
100% stainless steel construction for corrosion resistance and cleanliness
Two-pass configuration
Perfect for heating low-fouling fluids
Sanitary tri-clamp connections on the process side for easy installation
U-tubes allow tubes to expand and contract freely to prevent damage
Removable tube bundle and O-rings make replacement quick and easy
Wide size selections
